胶管钩针机 Rubber hose knitting machine
此款机器适用于在胶管外层钩编一层织物，产量高，配合挤出设备适合于流水线生产。

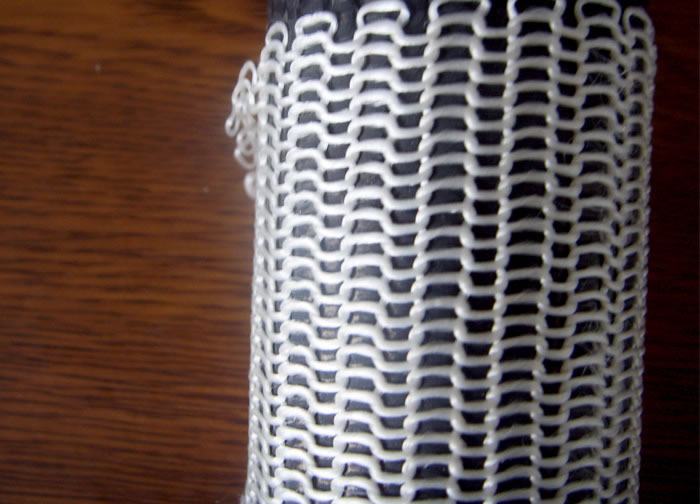

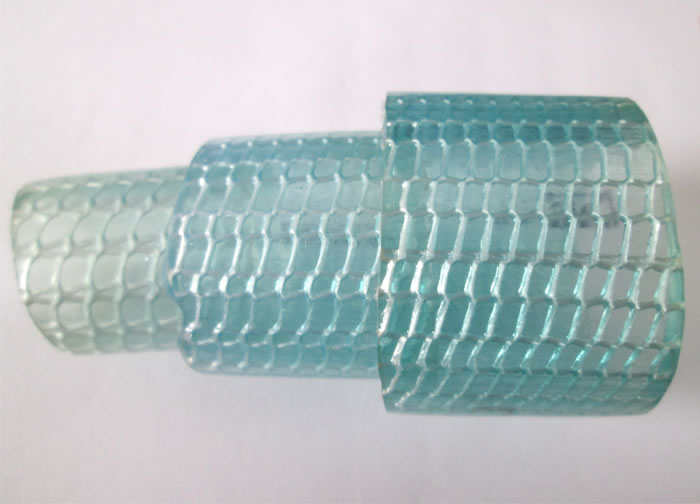

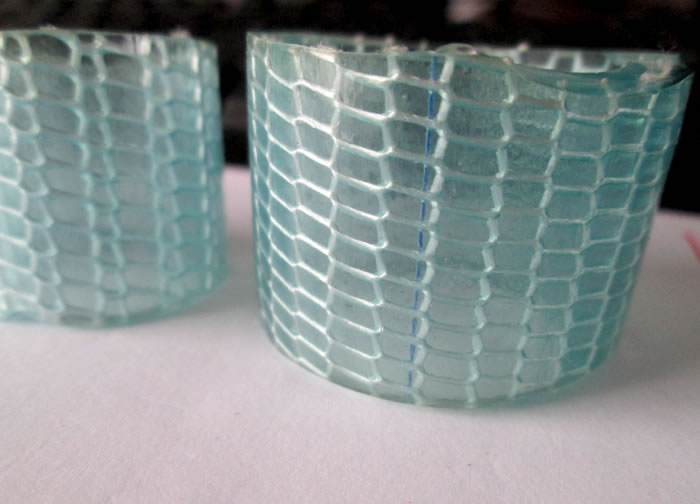

Rubber hose knitting machine is used to knit the weaving layer of rubber hose, which is of high output and suitable for production line together with extruding.
| Model |
QXHK |
|
Number of bobbin |
can be customized |
|
Bobbin weight |
～3Kg |
|
Suitable hose diameter |
8-100mm |
|
Number of needles |
8, 12, 18, 24 and so on |
|
Motor power |
5.5kw |
|
Center height |
1050±15mm（can be customized） |
|
Weight |
800kg |
|
Overall size |
1200*1455*2220mm (without packing) |
|
Speed of motor |
0-1500RPM |
|
Products diameter |
¼, 3 / 8, 1 / 2, 1, 1 1 / 18, 1 ¼, 1 ½, 1 ¾, 2inch |
|
Output |
Max. 6 meters/minute |
|
Suitable rubber extrusion |
12 meters/minute |
|
Traction take up |
optional |
|
Other device |
Automatic stop when door opened; warning device when appear needle broken、thread cut and thread disordered. |
